AHZC horizontal grinder

2758Browse Class：Crumbling series

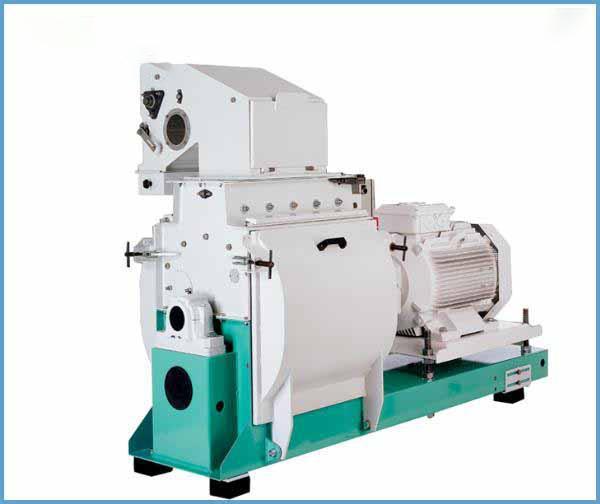

AHZC horizontal grinder
AHZC horizontal pulverizer can be used for pet and feed processing of fine grinding, can also be used for feed, flour and biofuel processing in coarse crushing.
Optimization design, to ensure efficient and effective crushing.
Hammer design and location optimization, and has the best hammer speed, can ensure the maximum contact material, high grinding efficiency;
Screen design of precision to ensure the comminuted particles discharged smoothly, thereby reducing energy consumption;
Strong power, power up to 250 KW, can provide first-class performance.
The screen and the hammer replacement is fast and simple, save time
The access door design easy maintenance screen;
Screen frame design. The use of tools do not need to replace the screen;
The hammer rod locking mechanism can achieve rapid and convenient maintenance hammer.
Can produce a variety of material
When the bulk density of 0.2 to 0.8 kg/ DM fand, when humidity is less than or equal to 15%:
For fine grinding: AHZC pulverizer adopts the fish scale sieve fine screen, to obtain the size range for 0.3 to 1.5 mm, particle size less than or equal to 10 mm;
For coarse crushing: AHZC pulverizer adopts hole mesh size range obtained for 1.5 to 8 mm, the particle size is less than 60mm.
